24 volt battery

Power supply Rechargeable 18650 24 volt 18ah 20ah Lithium ion Battery

POEAE-L-107
Delivery
EXW
minimum order
10 pieces
Supply Ability
2000pieces / Day
Country of Origin
China
Stock Time
18-25Day
Quantity:
US $93.10 - US $116.38 / pieces
Contact Now
add to cart



 ITEM  SPECIFICATION  REMARK
  Nominal Voltage  22.2V
  Nominal Capacity  18Ah  Standard  discharge  at 0.2C
  Charge Current  0.2C ~0.5C


  Working Current  15A
  Peak current   50A  Last time ≤1S
  Charge Voltage  25.2V
  Cycle life  ≥300 times until 70% capacity
  Ref. Discharge Cut off Voltage  18.0V
  Battery Cell Model  18650  3200mah
  Configuration  6S6P
  Size  L*W*H=191*86.5*84mm  With PCM and holder
  Connector/Terminal  Customized
 OEM & ODM Support
  Battery PCM function  Over charge/discharge,over current,        short circuit protection
  Weight  Approx. 1870g
  Charge Temperature Range  0°C to 45°C
  Discharge Temperature Range  -20°C to 60°C
  Recommended Storage Temperature  23 ± 5°C
  Battery Warranty  18 months


              Main Feature of this 24 volt battery :
                【HIGH DISCHARGE RATE 】This 24 volt battery have a great power .
                 【LIGHT WEIGHT】Weight is only about 1870g ,very easy to carry.
                 【RELIABLE GRADE A CHINA CELLS】 We choose only high end cells even it's a China brand,performance is good ,very safe
                    but price is more competitive.
                 【1YEAR WARRANTY】 If 24 volt battery has quality problem within one year,we can help fix or send new one for free,you don't need to
                    worry about after sales problem.
                 【CUSTOMIZED & SAVE TIME】 Battery cells,size,capacity ,voltage,connector... most parameters can be changed according to
                     your  request .You don't need to take too much time ti search an exist model .

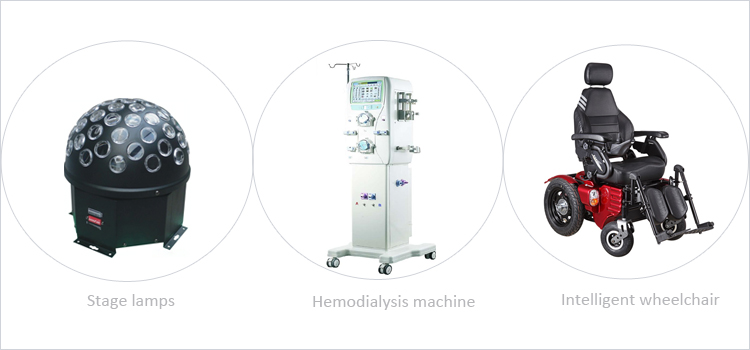

             Typical application



                            This series of 22.2V and above batteries can be widely used in:

                      * Military flashlights

                      * Electrical equipment

                      * Solar system

                      * Golf trolley cart

                      * Electric vehicles

                       * Portable test instrument, etc.











       1.Q:Are you really factory or just trade company?

                             A: We are factory, founded in 2007, if you don’t believe our words, we can show you a live video.

                         2.Q: How long is the warranty time?

                            A: Warranty time is 12 months for Li-ion/li-polymer battery and 18 months for LiFePO4 battery. Our battery defective ratio is under

                                0.2%, we will  repair defective batteries for free and bare shipping fee if it’s quality problem.

                         3.Q: How to proceed with an order?

                             A: We make customized battery, with check details such as application, voltage, capacity, size, discharge current, order quantity,

                                   etc., then quote based on your request, if no problem ,we can draft sample order for your confirmation and arrange payment,

                                   then we make sample for testing.

                         4.Q: How’s your leadtime?

                           A: 2-5 days for samples, 15-25 days for mass production. If it’s special model or complex design, leadtime will be longer.

                         5.Q:Is it OK to print my logo on it?

                           A: Yes, as long as you provide authorization to us, we will print logo on battery.

                         6.Q: What’s the payment terms?

                             A: Sample fee should be 100% prepaid. For mass production, payment terms is 30% deposit, 70% balance to be paid before

                                shipment. For big amount, we can discuss better payment terms for you after 2-3 orders.

                      Contact us to know more details about price, customize solution ,discount ,etc.
