302030 battery

Small Pouch Type 302030 3.7v 140mah Rechargeable Lipo Battery with PCB and Connector

POEAE-L-529
Delivery
EXW
minimum order
200 pieces
Supply Ability
20000pieces / Day
Country of Origin
China
Stock Time
18-25Day
Quantity:
US $0.97 - US $1.21 / pieces
Contact Now
add to cart



 ITEM  SPECIFICATION  REMARK
  Nominal Voltage  3.7V
  Nominal Capacity  140mAh  Standard  discharge  at 0.2C
  Charge Current  0.2C ~0.5C


  Working Current  9mA
  Peak current  80mA  Last time ≤1S
  Charge Voltage  4.2V
  Inner Resistance  ≤255mΩ
  Cycle life  ≥300 times until 70% capacity
  Ref. Discharge Cut off Voltage  3.0V
  Battery Cell Model  302030 140mah
  Configuration  1S1P
  Size  L*W*H=32.7*19.6*3.5mm  With PCM
  Connector/Terminal  PH2.0-3P
 OEM & ODM Support
  Battery PCM function  Over charge/discharge,over current,        short circuit protection
  Weight  Approx. 4g
  Charge Temperature Range  0°C to 45°C
  Discharge Temperature Range  -20°C to 60°C
  Recommended Storage Temperature  23 ± 5°C
  Battery Warranty  12 months


              Main Feature of this 302030 battery  :
                【HIGH QUALITY PCM】Use Seiko IC.
                 【LIGHT WEIGHT】Weight is only about 4g ,very easy to carry.
                 【RELIABLE GRADE A CHINA CELLS】 We choose only high end cells even it's a China brand,performance is good ,very safe
                    but price is more competitive.
                 【1YEAR WARRANTY】 If 302030 battery has quality problem within one year,we can help fix or send new one for free,you
                     don't need to worry  about after sales problem.

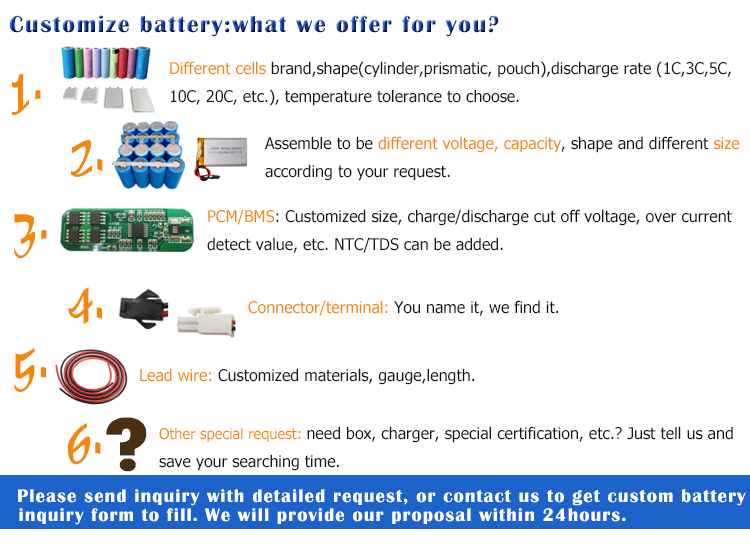

                 【CUSTOMIZED & SAVE TIME】 Battery cells,size,capacity ,voltage,connector... most parameters can be changed according to
                     your  request .You don't need to take too much time ti search an exist model .

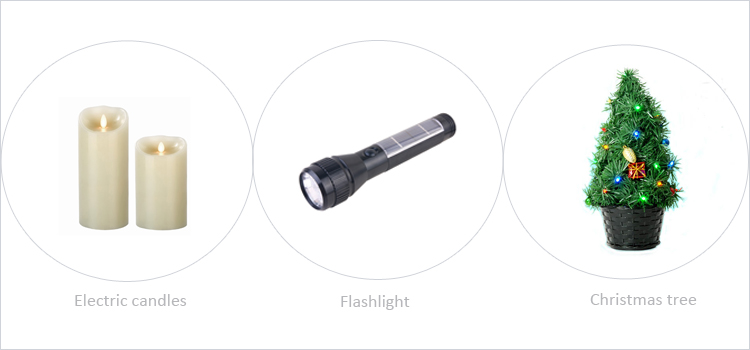

             Typical application



                            This series of 3.2V and 3.7V lithium ion batteries can be widely used in:

                      * Flashlights

                      * POS machine

                      * Fishing equipment

                      * Smart phone

                      * Louder speakers

                      * LED light,etc.











       1.Q:Are you really factory or just trade company?

                             A: We are factory, founded in 2007, if you don’t believe our words, we can show you a live video.

                         2.Q: How long is the warranty time?

                            A: Warranty time is 12 months for Li-ion/li-polymer battery and 18 months for LiFePO4 battery. Our battery defective ratio is under

                                0.2%, we will  repair defective batteries for free and bare shipping fee if it’s quality problem.

                         3.Q: How to proceed with an order?

                             A: We make customized battery, with check details such as application, voltage, capacity, size, discharge current, order quantity,

                                   etc., then quote based on your request, if no problem ,we can draft sample order for your confirmation and arrange payment,

                                   then we make sample for testing.

                         4.Q: How’s your leadtime?

                           A: 2-5 days for samples, 15-25 days for mass production. If it’s special model or complex design, leadtime will be longer.

                         5.Q:Is it OK to print my logo on it?

                           A: Yes, as long as you provide authorization to us, we will print logo on battery.

                         6.Q: What’s the payment terms?

                             A: Sample fee should be 100% prepaid. For mass production, payment terms is 30% deposit, 70% balance to be paid before

                                shipment. For big amount, we can discuss better payment terms for you after 2-3 orders.

                      Contact us to know more details about price, customize solution ,discount ,etc.
