24v 20ah battery

Hot Selling 24v 25.9v 20Ah 18650 Rechargeable Lithium ion Battery for High Power Tool

POEAE-L-414
Delivery
EXW
minimum order
2 pieces
Supply Ability
3000pieces / Day
Country of Origin
China
Stock Time
18-22Day
Quantity:
US $126.00 - US $140.00 / pieces
Contact Now
add to cart



 ITEM  SPECIFICATION  REMARK
  Nominal Voltage  25.9V
  Nominal Capacity  20Ah  Standard  discharge  at 0.2C
  Charge Current  0.2C ~0.5C


  Working Current  10A
  Peak current   35A  Last time ≤1S
  Charge Voltage  90V
  Cycle life  ≥300 times until 70% capacity
  Ref. Discharge Cut off Voltage  21.0V
  Battery Cell Model  18650  2500mah
  Configuration  7S8P
  Size  L*W*H=149*133*94mm  With PCM
  Connector/Terminal  Anderson SB50
 OEM & ODM Support
  Battery PCM function  Over charge/discharge,over current,        short circuit protection
  Weight  Approx. 3031g
  Charge Temperature Range  0°C to 45°C
  Discharge Temperature Range  -20°C to 60°C
  Recommended Storage Temperature  23 ± 5°C
  Battery Warranty  12 months


              Main Feature of this 24v 20ah battery  :
                 【LIGHT WEIGHT】Weight is only about 3031g ,very easy to carry.
                 【RELIABLE GRADE A CHINA CELLS】 We choose only high end cells even it's a China brand,performance is good ,very safe
                    but price is more competitive.
                 【1YEAR WARRANTY】 If 24v 20ah battery has quality problem within one year,we can help fix or send new one for free,you don't need to
                    worry about after sales problem.
                 【CUSTOMIZED & SAVE TIME】 Battery cells,size,capacity ,voltage,connector... most parameters can be changed according to
                     your  request .You don't need to take too much time ti search an exist model .

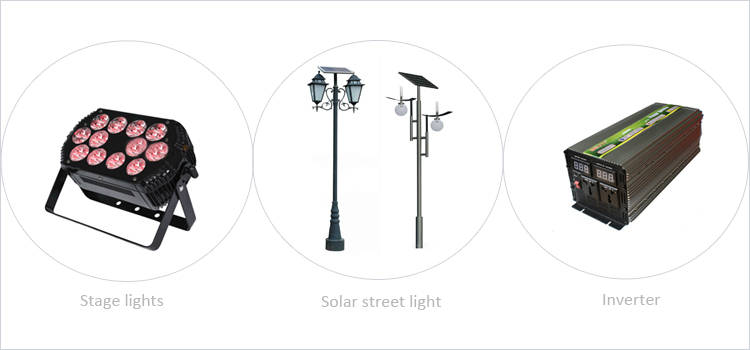

             Typical application



                            This series of 22.2V and above batteries can be widely used in:

                      * Military flashlights

                      * Electrical equipment

                      * Solar system

                      * Golf trolley cart

                      * Electric vehicles

                       * Portable test instrument, etc.











       1.Q:Are you really factory or just trade company?

                             A: We are factory, founded in 2007, if you don’t believe our words, we can show you a live video.

                         2.Q: How long is the warranty time?

                            A: Warranty time is 12 months for Li-ion/li-polymer battery and 18 months for LiFePO4 battery. Our battery defective ratio is under

                                0.2%, we will  repair defective batteries for free and bare shipping fee if it’s quality problem.

                         3.Q: How to proceed with an order?

                             A: We make customized battery, with check details such as application, voltage, capacity, size, discharge current, order quantity,

                                   etc., then quote based on your request, if no problem ,we can draft sample order for your confirmation and arrange payment,

                                   then we make sample for testing.

                         4.Q: How’s your leadtime?

                           A: 2-5 days for samples, 15-25 days for mass production. If it’s special model or complex design, leadtime will be longer.

                         5.Q:Is it OK to print my logo on it?

                           A: Yes, as long as you provide authorization to us, we will print logo on battery.

                         6.Q: What’s the payment terms?

                             A: Sample fee should be 100% prepaid. For mass production, payment terms is 30% deposit, 70% balance to be paid before

                                shipment. For big amount, we can discuss better payment terms for you after 2-3 orders.

                      Contact us to know more details about price, customize solution ,discount ,etc.
