Home > Products > Classify by material > Li-polymer Battery >

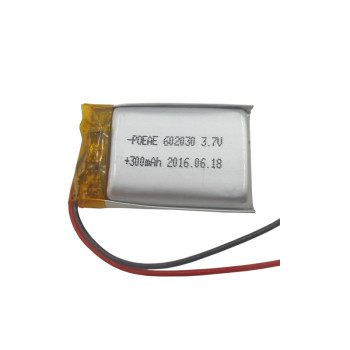

Small rechargeable 602030 li-polymer battery 3.7v with 300mah

Small rechargeable 602030 li-polymer battery 3.7v with 300mah

Small rechargeable 602030 li-polymer battery 3.7v with 300mah
Small rechargeable 602030 li-polymer battery 3.7v with 300mahSmall rechargeable 602030 li-polymer battery 3.7v with 300mahSmall rechargeable 602030 li-polymer battery 3.7v with 300mahSmall rechargeable 602030 li-polymer battery 3.7v with 300mah
CategoriesLi-polymer Battery
BrandPOEAE
Model602030 3.7v 300mah
Warranty1 year
Maintenance10 years
Cycle lifeOver 300 Times
OEM/ODMAvailable
Standard charge current0.2C, 60mA
Standard discharge current0.2C, 60mA
Max continuous discharge current1C, 300mA
Charging voltage4.2V
Item NumberPOEAE-L-175
Keywordsli-polymer battery 3.7v with 300mah
FOB portShenzhen, Hongkong, others
Terms of PaymentL/C, Western Union, MoneyGram, T/T, Paypal
Download DOC
Update Time2021-06-20
Detail Information
Product Introduction

Main parameters of li-polymer battery 3.7v with 300mah

1

Battery cell model

602030

2

Combination

1S1P+PCM

3

Nominal voltage

3.7V

4

Nominal capacity

300mAh

5

Standard discharge current

0.2C

6

Max discharge current

1C

7

Standard charge current

0.2C

8

Fast charge current

0.5C

9

Inner resistance

252mohm

10

Over discharge cut off voltage/series

2.4 ± 0.06V

11

Over charge protection voltage/series

4.25± 0.03V

12

Discharge working temperature

-20-60°C

13

Charge working temperature

0-45°C

14

Recommended storage temperature

23 ± 5°C

15

Flow value

1A

16

Weight

about 6.6g

17

Size

L*W*H= 32*20*6mm




Application Fields

li ion battery 1s4p

The typical applications of this  li-polymer battery 3.7v with 300mahare recording pen,alarm apparatus and smartband.


The series of 3.2V&3.7V lithium polymer batteries can be widely used in:

Flashlights, POS machine, fishing equipment, smart phone, bluetooth headest, loundspeakers, traffic tester, curing light, portable EGC monitor, portable oxygen making machine, portable outdoors speaker, vehicle intelligent terminal, LED light, handset, …

Common models of lithium polymer battery

Capacity less than 1000mAh

NO. model capacity(mAh) voltage(V) resistance(mΩ)  measurement(L*W*H ±0.5mm)
1 102443 950 3.7 70  43*24*10
2 303030 200 3.7 150 30*30*3
3 401020 55  3.7 220 20*10*4
4 402030 180 3.7 120 30*20*4
5 402530 250 3.7 120 30*25*4
6 452048 380 3.7 110  48*20*4.5
7 502030 250 3.7 120 30*25*5
8 502340 420 3.7 112 40*23*5
9 502535 400 3.7 110 35*25*5
10 502847 600 3.7 80  47*28*5
11 503035 500 3.7 80  35*30*5
12 503040 500 3.7 80  40*30*5
13 503040 600 3.7 80  40*30*5
14 522438 400 3.7 110  38*24*5.2
15 552535 400 3.7 110  35*25*5.5
16 553048 800 3.7 75  48*30*5.5
17 602020 180 3.7 120 20*20*6
18 602030 300 3.7 100  30*20*6
19 602040 400 3.7 100 40*20*6
20 602045 500 3.7 80  45*20*6
21 602535 500 3.7 80  35*25*6
22 603030 520 3.7 80  30*30*6
23 603030 550 3.7 80  30*30*6
24 603035 600 3.7 80  35*30*6
25 603048 800 3.7 75  48*30*6
26 603443 900 3.7 70  43*34*6
27 703030 550 3.7 80  30*30*7
28 742640 800 3.7 75    40*26*7.4
29 751860 720 3.7 78  60*18*7.5
30 751860 780 3.7 76  60*18*7.5
31 802030 400 3.7 90  30*20*8
32 901860 950 3.7 70  60*18*9
33 932540 930 3.7 70  40*25*9.3

Capacity between 1000mAh and 3000mAh

NO. model capacity(mAh) voltage(V) resistance(mΩ) measurement(L*W*H ±0.5mm)
1 103040 1200 3.7 65 40*30*10
2 103450 1800 3.7 60 50*34*10
3 103560 2500 3.7 56 60*35*10
4 355780 1300 3.7 15 80*57*3.5
5 386888 1800 3.7 19 88*68*3.8
6 503759 1200 3.7 65 59*37*5
7 503759 1350 3.7 62 59*37*5
8 503860 1250 3.7 65 60*38*5
9 523450 1000 3.7 68 50*34*5.2
10 603450 1000 3.7 68 50*3.4*6
11 604045 1200 3.7 65 45*40*6
12 703048 1000 3.7 68 48*30*7
13 803040 1000 3.7 68 40*30*8
14 823291 2800 3.7 54 91*32*8.2
15 853048 1200 3.7 65 48*30*8.5


Capacity more than 3000mAh

NO. model capacity(mAh) voltage(V) resistance(mΩ) measurement(L*W*H ±0.5mm)
1 104167 3300 3.7 50 67*41*10
2 105080 5000 3.7 46 80*50*10
3 114077 4100 3.7 50 77*40*11
4  507097 4250 3.7 49 97*70*5
5  526897 4300 3.7 50  97*68*5.2
6   5566113 5000 3.7 56    113*66*5.5
7  605080 3000 3.7 53  80*50*6
8  606090 4000 3.7 51  90*60*6
9   6068116 6000 3.7 49  116*68*6
10   7050100 4000 3.7 51  100*50*7
11   7242125 3200 3.7 19  125*42*7.2
12   7566121 7000 3.7 45  121*66*7.5
13   8570170  10000 3.7 40  170*70*8.5
14      805080/83 4000 3.7 51  80/83*50*8
Qualification certification


Our certificates of some batteries for reference

li ion battery 1s4p

We got ISO9001 certification, some batteriesare SGS, CE, PSE, KC, UL, IEC, RoHs and UN38.3 certified, MSDS can be provided.If the 3.7v 300mahli-polymer battery you want doesn't have current certification, we could apply for you.


Shipping and Payment

There is always a suitable way for you!

portable 24v power adapter

We could arrange sea, air and express (UPS, DHL, FEDEX, TNT, EMS, etc.) transportation for li-polymer battery 3.7v with 300mah , with 10 years experience and trustworthy forwarder partners, shipment won’t be a problem.


T/T, Paypal, credit card, western union andL/C payment are acceptable, choose a convenient way for yourself!


Customize battery


li ion battery 1s4p
We do custom battery, if there's no suitable design for you on our website, just take the CUSTOM TABLE on the website for reference or contact us directly to confirm the necessaryparameters, we will customize a suitable one for you!
