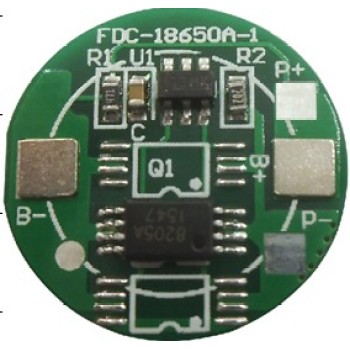

Rould 1s protection PCB board for rechargeable lithium ion battery



Electrical Diagram



Parameters

No

Item

Condition

Specification

1

输入电压/input Voltage

B+/B-间输入电压/input Voltage B+ to B-

-0.3+26V

2

过充电

Overcharge

保护电压/Detection voltage

4.350±0.050V

3

恢复电压/ Release voltage

4.150±0.050V

4

保护延迟时间/ Detection delay time

1.0±0.5S

5

过放电

Over discharge

保护电压/Detection voltage

2.4±0.08V

6

恢复电压/ Release voltage

3.0±0.10V

7

保护延迟时间/ Detection delay time

100±50mS

8

放电过流

Over discharge current

放电过流保护电流/Over current

4.008.00A

9

放电过流保护延时/delay time

10.0±5.0mS

10

短路保护

短路保护延时/ Short detection delay time

100600uS

11

恢复条件/Release Conditions

断开负载/Cut off load

12

自耗电

Normal current consumption

工作状态自耗电

Normal current consumption of PCM

Max50.00uA

13

OV充电/0V charger

是否允许0V充电/allowed 0V change

YES

14

建议工作条件

Suggest working conditions

建议最大持续充/放电电流

max continuous charge/discharge current

3.00A

15

建议工作温度/suggest working temperature

-2060

16

内阻/IR resistance

PCM内阻/ IR of PCM

≤70.00 mΩ

17

PCM尺寸

The size of final PCM

长度/ The length of final PCM

17.50±0.10mm

18

宽度/ The width of final PCM

17.50±0.10mm

19

厚度/ The thickness of final PCM

MAX:2.00mm

20

外观

Appearance

1)    没有元器件的破损/Nothing part deflection

2)    所有焊点良好/The status of solder is all right

3)    PCM 没有翘曲/ PCM will not crook

4)    符合力通威的出货外观标准

 Settle for LTW Module appearance standard
