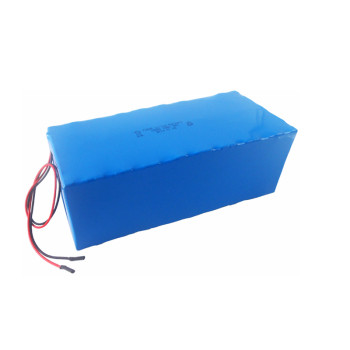

Deep cycle battery 24v 20ah 18650 lithium ion battery pack for 24v solar lighting systems electric bike

Deep cycle battery 24v 20ah 18650 lithium ion battery pack for 24v solar lighting systems electric bike

Deep cycle battery 24v 20ah 18650 lithium ion battery pack for 24v solar lighting systems electric bike
Deep cycle battery 24v 20ah 18650 lithium ion battery pack for 24v solar lighting systems electric bikeDeep cycle battery 24v 20ah 18650 lithium ion battery pack for 24v solar lighting systems electric bikeDeep cycle battery 24v 20ah 18650 lithium ion battery pack for 24v solar lighting systems electric bikeDeep cycle battery 24v 20ah 18650 lithium ion battery pack for 24v solar lighting systems electric bike
Categories24V Lithium Battery
AlbumView larger image
BrandPOEAE
Model22.2V 20Ah li-ion battery
Warranty1 year
Maintenance10 years
Main colorBlue
OEM/ODMAvailable
MOQ50pcs
PaymentT/T, credit card,paypal, others
PortShenzhen, Hongkong
PackingSuitable carton packing
Item NumberPOEAE-L-49
Product name24v lithium ion deep cycle battery
Unit PriceUS $ 105.9-115.97 / piece
FOB portShenzhen, Hongkong, others
Terms of PaymentL/C, D/A, D/P, Western Union, T/T, Paypal
Download DOC
Update Time2018-11-18
Detail Information
 Product Introduction

Main parameters of 24v lithium ion deep cycle battery

1

Battery cell model

18650

2

Combination

6S9P+PCM

3

Nominal voltage

22.2V

4

Nominal capacity

20Ah

5

Standard discharge current

0.2C

6

Max discharge current

1C

7

Standard charge current

0.2C

8

Fast charge current

0.5C

9

Inner resistance

139mohm

10

Over discharge cut off voltage/series

2.4 ± 0.06V

11

Over charge protection voltage/series

4.25 ± 0.03V

12

Discharge working temperature

-20-60°C

13

Charge working temperature

0-45°C

14

Recommended storage temperature

23 ± 5°C

15

Flow value

22A

16

Weight

about 2.6kg

17

Size

L*W*H= 167*111*70mm




Not clear parts and invisible parts


The  24v lithium ion deep cycle battery usually includes high end battery cells, PCM, label, connetor and electric wires all parameters related are customized according to your request.


Battery production flow



Application Fields


The typical applications of this  24v lithium ion deep cycle battery are stage lamps, hemodialysis machine and intelligent wheelchair.

This series of 22.2V and above lithium batteries can be widely used in:

Military flashlights, electrical equipment, color changing light for the stage, pipline construction machine, X-ray machine, electric tools, industrial weighing machinery, fire-fighting equipment, electric vehicles, portable test instruments......

Qualification certification


Our certificates of some batteries for reference

best battery pack

We got ISO9001 certification, some batteries are SGS, CE, PSE, KC, UL, IEC, RoHs and UN38.3 certified, MSDS can be provided.If the 24v lithium ion deep cycle battery you want doesn't have current certification, we could apply for you.


Shipping and Payment


There is always a suitable way for you!

best external battery

We could arrange sea, air and express (UPS, DHL, FEDEX, TNT, EMS, etc.) transportation for 24v lithium ion deep cycle battery,with 10 years experience and trustworthy forwarder partners, shipment won’t be a problem.


T/T, Paypal, credit card, western union andL/C payment are acceptable, choose a convenient way for yourself!



Company Informaiton

Company picture & brief introduction12v lifepo4 lithium batteryEstablished in 2007, Dongguan Liliang Electronics Co., LTD is a high-tech enterprise which is set R&D, manufacture and sales in a body. We mainly engaged in custom Li-ion battery packs, Li-polymer battery packs, LiFePO4 battery packs and chargers, OEM&OEM are available. We established firm business relationship with more than 1000 companies in domestic and overseas, registered our own brand“POEAE”, and have rich experience in research, development and manufacture batteries, you may save much more time and cost by ordering directly from us.


Why choose us?

1. Have been engaged in custom battery since 2007

2. Provide sample for free if amount less than USD5

3. Never exaggerate battery capacity

4. Battery management systems/PCMs are with the same quality as Seiko

5. Finished battery safety performance could reach UL, CE, KPS, KC, etc. testing standard

6. Got ISO9001 quality system certification

7. 5S factory with dust-free workshop

8. Process design far exceeds battery industry standard

9. 100% quality inspection

10. One year warranty, 10 years maintenance


 Customer visiting & main markets12v lifepo4 lithium battery

 Our main markets are North America, Europe, Japan, Korea, and other countries in east Asia, etc.

12v lifepo4 lithium battery

FAQ

 1. Q: Do you have current sample in stock?

     A: Usually we don’t have, because different customers have different requests, even the voltage and capacity are the same, other parameters maybe different. But we could finish your sample quickly once order confirmed.



2.  Q: What’s the delivery time for mass production?

     A: Usually 25-32days, it depends on the quantity, material, battery cell model and so on, we suggest to check delivery time case by case.



3.  Q: What kind of certificates could you provide for the battery?

     A: It’s custom-making design, no current certificate, but we could apply CE, UL, UN38.3 and other related certificates for you, but the certificates fee needs to be paid by you, if your quantity is big enough, certificates fee could be refunded.



4.  Q: Do you offer charger for battery?

     A: Yes, we do. If you also need charger, please mention it when sending inquiry, kindly note that our charger cost is not included in the battery cost.



5.  Q: Are you manufacturer or simply trading company?

     A: We are manufacturer, and we sincerely welcome you to visit our factory!



Customize battery


power pack battery
We do custom battery, if there's no suitable design for you on our website, just take the CUSTOM TABLE on the website for reference or contact us directly to confirm the necessary parameters, we will customize a suitable one for you!
