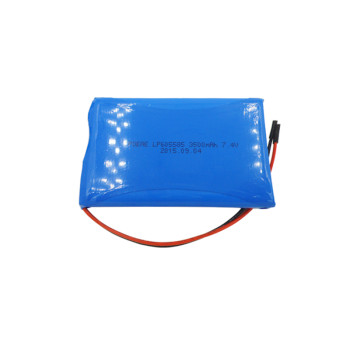

7.4v 3500mah 2s lipo battery pack for helicopter/quadcopter Malaysia

7.4v 3500mah 2s lipo battery pack for helicopter/quadcopter Malaysia

7.4v 3500mah 2s lipo battery pack for helicopter/quadcopter Malaysia
7.4v 3500mah 2s lipo battery pack for helicopter/quadcopter Malaysia7.4v 3500mah 2s lipo battery pack for helicopter/quadcopter Malaysia7.4v 3500mah 2s lipo battery pack for helicopter/quadcopter Malaysia7.4v 3500mah 2s lipo battery pack for helicopter/quadcopter Malaysia
CategoriesLi-polymer Battery
AlbumView larger image
BrandPOEAE
Model605585
Warranty1 year
Maintenance10 years
Main colorBlue
OEM/ODMAvailable
MOQ1000pcs
PackingCarton packing
Item NumberPOEAE-L-74
Keywords7.4v 3500mah battery
Unit PriceUS $ 7.62-9.09 / piece
FOB portShenzhen, Hongkong,other
Terms of PaymentL/C, Western Union, MoneyGram, T/T
Download DOC
Update Time2019-04-20
Detail Information
Product Introduction

Main parameters of 7.4v 3500mah battery

1

Battery cell model

605585

2

Combination

2S1P+PCM

3

Nominal voltage

7.4V

4

Nominal capacity

3500mAh

5

Standard discharge current

0.2C

6

Max discharge current

1C

7

Standard charge current

0.2C

8

Fast charge current

0.5C

9

Inner resistance

133mohm

10

Over discharge cut off voltage/series

2.4 ± 0.06V

11

Over charge protection voltage/series

4.25± 0.03V

12

Discharge working temperature

-20-60°C

13

Charge working temperature

0-45°C

14

Recommended storage temperature

23 ± 5°C

15

Flow value

5.21A

16

Weight

about 124.2g

17

Size

L*W*H= 87*55*18mm
















Not clear parts and invisible parts

li ion battery 1s4p

 The 7.4v 3500mah battery usually includes high end batterycells, PCM, electric wires and label, all parameters related are customized according to your request.


Battery production flow


Application Fields

li ion battery 1s4p

The typical applications of this 7.4v 3500mah battery are timer, POS machine and electric shaver.

The series of 3.2V&3.7V lithium polymer batteries can be widely used in:

Flashlights, POS machine, fishing equipment, smart phone, bluetooth headest, loundspeakers, traffic tester, curing light, portable EGC monitor, portable oxygen making machine, portable outdoors speaker, vehicle intelligent terminal, LED light, handset, …

Common models of lithium polymer battery

Capacity less than 1000mAh

NO.model capacity(mAh)voltage(V)resistance(mΩ) measurement(L*W*H ±0.5mm)
11024439503.770 43*24*10
23030302003.715030*30*3
340102055 3.722020*10*4
44020301803.712030*20*4
54025302503.712030*25*4
64520483803.7110 48*20*4.5
75020302503.712030*25*5
85023404203.711240*23*5
95025354003.711035*25*5
105028476003.780 47*28*5
115030355003.780 35*30*5
125030405003.780 40*30*5
135030406003.780 40*30*5
145224384003.7110 38*24*5.2
155525354003.7110 35*25*5.5
165530488003.775 48*30*5.5
176020201803.712020*20*6
186020303003.7100 30*20*6
196020404003.710040*20*6
206020455003.780 45*20*6
216025355003.780 35*25*6
226030305203.780 30*30*6
236030305503.780 30*30*6
246030356003.780 35*30*6
256030488003.775 48*30*6
266034439003.770 43*34*6
277030305503.780 30*30*7
287426408003.775   40*26*7.4
297518607203.778 60*18*7.5
307518607803.776 60*18*7.5
318020304003.790 30*20*8
329018609503.770 60*18*9
339325409303.770 40*25*9.3

Capacity between 1000mAh and 3000mAh

NO.modelcapacity(mAh)voltage(V)resistance(mΩ) measurement(L*W*H ±0.5mm)
110304012003.76540*30*10
210345018003.76050*34*10
310356025003.75660*35*10
435578013003.71580*57*3.5
538688818003.71988*68*3.8
650375912003.76559*37*5
750375913503.76259*37*5
850386012503.76560*38*5
952345010003.76850*34*5.2
1060345010003.76850*3.4*6
1160404512003.76545*40*6
1270304810003.76848*30*7
1380304010003.76840*30*8
1482329128003.75491*32*8.2
1585304812003.76548*30*8.5


Capacity more than 3000mAh

NO.modelcapacity(mAh)voltage(V)resistance(mΩ)measurement(L*W*H ±0.5mm)
110416733003.75067*41*10
210508050003.74680*50*10
311407741003.75077*40*11
4 50709742503.74997*70*5
5 52689743003.750 97*68*5.2
6  556611350003.756   113*66*5.5
7 60508030003.753 80*50*6
8 60609040003.751 90*60*6
9  606811660003.749 116*68*6
10  705010040003.751 100*50*7
11  724212532003.719 125*42*7.2
12  756612170003.745 121*66*7.5
13  8570170 100003.740 170*70*8.5
14     805080/8340003.751 80/83*50*8
Qualification certification


Our certificates of some batteries for reference

li ion battery 1s4p

We got ISO9001 certification, some batteriesare SGS, CE, PSE, KC, UL, IEC, RoHs and UN38.3 certified, MSDS can be provided.If the 7.4v 3500mah battery you want doesn't have current certification, we could apply for you.


Shipping and Payment

There is always a suitable way for you!

portable 24v power adapter

We could arrange sea, air and express (UPS, DHL, FEDEX, TNT, EMS, etc.) transportation for 7.4v 3500mah battery, with 10 years experience and trustworthy forwarder partners, shipment won’t be a problem.


T/T, Paypal, credit card, western union andL/C payment are acceptable, choose a convenient way for yourself!




Company Informaiton

Company picture & brief introduction12v lifepo4 lithium batteryEstablished in 2007, Dongguan Liliang Electronics Co., LTD is a high-tech enterprise which is set R&D, manufacture and sales in a body. We mainly engaged in custom Li-ion battery packs, Li-polymer battery packs, LiFePO4 battery packs and chargers, OEM&OEM are available. We established firm business relationship with more than 1000 companies in domestic and overseas, registered our own brand“POEAE”, and have rich experience in research, development and manufacture batteries, you may save much more time and cost by ordering directly from us.


Why choose us?

1. Have been engaged in custom battery since 2007

2. Provide sample for free if amount less than USD5

3. Never exaggerate battery capacity

4. Battery management systems/PCMs are with the same quality as Seiko

5. Finished battery safety performance could reach UL, CE, KPS, KC, etc. testing standard

6. Got ISO9001 quality system certification

7. 5S factory with dust-free workshop

8. Process design far exceeds battery industry standard

9. 100% quality inspection

10. One year warranty, 10 years maintenance


 Customer visiting & main markets12v lifepo4 lithium battery

 Our main markets are North America, Europe, Japan, Korea, and other countries in east Asia, etc.

12v lifepo4 lithium battery

FAQ

 1. Q: Do you have current sample in stock?

     A: Usually we don’t have, because different customers have different requests, even the voltage and capacity are the same, other parameters maybe different. But we could finish your sample quickly once order confirmed.



2.  Q: What’s the delivery time for mass production?

     A: Usually 25-32days, it depends on the quantity, material, battery cell model and so on, we suggest to check delivery time case by case.



3.  Q: What kind of certificates could you provide for the battery?

     A: It’s custom-making design, no current certificate, but we could apply CE, UL, UN38.3 and other related certificates for you, but the certificates fee needs to be paid by you, if your quantity is big enough, certificates fee could be refunded.



4.  Q: Do you offer charger for battery?

     A: Yes, we do. If you also need charger, please mention it when sending inquiry, kindly note that our charger cost is not included in the battery cost.



5.  Q: Are you manufacturer or simply trading company?

     A: We are manufacturer, and we sincerely welcome you to visit our factory!


Customize battery


li ion battery 1s4p
We do custom battery, if there's no suitable design for you on our website, just take the CUSTOM TABLE on the website for reference or contact us directly to confirm the necessaryparameters, we will customize a suitable one for you!
