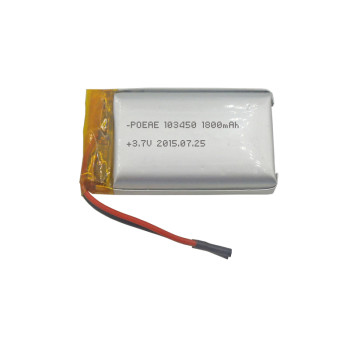

Rechargeable 103450 3.7v 1800mah li-polymer battery for heated gloves
Rechargeable 103450 3.7v 1800mah li-polymer battery for heated gloves
| Categories | Li-polymer Battery |
|---|---|
| Brand | POEAE |
| Model | 103450 |
| Warranty | 1 year |
| Maintenance | 10 years |
| Main color | Silvery grey |
| OEM/ODM | Available |
| MOQ | 1000pcs |
| Packing | Carton packing |
| Item Number | POEAE-L-187 |
| Keywords | 3.7v li-polymer battery |
| Unit Price | US $ 1.95-2.2 / piece |
| FOB port | Shenzhen, Hongkong,other |
| Terms of Payment | L/C, Western Union, MoneyGram, T/T |
| Download DOC |   |
| Update Time | 2022-01-28 |
Main parameters of rechargeable li-polymer battery
1 | Battery cell model | 103450 |
2 | Combination | 1S1P+PCM |
3 | Nominal voltage | 3.7V |
4 | Nominal capacity | 1800mAh |
5 | Standard discharge current | 0.2C |
6 | Max discharge current | 1C |
7 | Standard charge current | 0.2C |
8 | Fast charge current | 0.5C |
9 | Inner resistance | 55mohm |
10 | Over discharge cut off voltage/series | 2.4 ± 0.06V |
11 | Over charge protection voltage/series | 4.25± 0.03V |
12 | Discharge working temperature | -20-60°C |
13 | Charge working temperature | 0-45°C |
14 | Recommended storage temperature | 23 ± 5°C |
15 | Flow value | 4A |
16 | Weight | about 36g |
17 | Size | L*W*H= 52*34*10mm |
Protection board circuit diagram
Not clear parts and invisible parts
The rechargeable li-polymer battery usually includes high end batterylabel, PCM and electric wires all parameters related are customized according to your request.
The typical applications of this rechargeable li-polymer battery are heating, GPS amd heating gloves.
The series of 3.2V&3.7V lithium polymer batteries can be widely used in:
Flashlights, POS machine, fishing equipment, smart phone, bluetooth headest, loundspeakers, traffic tester, curing light, portable EGC monitor, portable oxygen making machine, portable outdoors speaker, vehicle intelligent terminal, LED light, handset, …
Common models of lithium polymer battery
Capacity less than 1000mAh
| NO. | model | capacity(mAh) | voltage(V) | resistance(mΩ) | measurement（L*W*H ±0.5mm） |
| 1 | 102443 | 950 | 3.7 | 70 | 43*24*10 |
| 2 | 303030 | 200 | 3.7 | 150 | 30*30*3 |
| 3 | 401020 | 55 | 3.7 | 220 | 20*10*4 |
| 4 | 402030 | 180 | 3.7 | 120 | 30*20*4 |
| 5 | 402530 | 250 | 3.7 | 120 | 30*25*4 |
| 6 | 452048 | 380 | 3.7 | 110 | 48*20*4.5 |
| 7 | 502030 | 250 | 3.7 | 120 | 30*25*5 |
| 8 | 502340 | 420 | 3.7 | 112 | 40*23*5 |
| 9 | 502535 | 400 | 3.7 | 110 | 35*25*5 |
| 10 | 502847 | 600 | 3.7 | 80 | 47*28*5 |
| 11 | 503035 | 500 | 3.7 | 80 | 35*30*5 |
| 12 | 503040 | 500 | 3.7 | 80 | 40*30*5 |
| 13 | 503040 | 600 | 3.7 | 80 | 40*30*5 |
| 14 | 522438 | 400 | 3.7 | 110 | 38*24*5.2 |
| 15 | 552535 | 400 | 3.7 | 110 | 35*25*5.5 |
| 16 | 553048 | 800 | 3.7 | 75 | 48*30*5.5 |
| 17 | 602020 | 180 | 3.7 | 120 | 20*20*6 |
| 18 | 602030 | 300 | 3.7 | 100 | 30*20*6 |
| 19 | 602040 | 400 | 3.7 | 100 | 40*20*6 |
| 20 | 602045 | 500 | 3.7 | 80 | 45*20*6 |
| 21 | 602535 | 500 | 3.7 | 80 | 35*25*6 |
| 22 | 603030 | 520 | 3.7 | 80 | 30*30*6 |
| 23 | 603030 | 550 | 3.7 | 80 | 30*30*6 |
| 24 | 603035 | 600 | 3.7 | 80 | 35*30*6 |
| 25 | 603048 | 800 | 3.7 | 75 | 48*30*6 |
| 26 | 603443 | 900 | 3.7 | 70 | 43*34*6 |
| 27 | 703030 | 550 | 3.7 | 80 | 30*30*7 |
| 28 | 742640 | 800 | 3.7 | 75 | 40*26*7.4 |
| 29 | 751860 | 720 | 3.7 | 78 | 60*18*7.5 |
| 30 | 751860 | 780 | 3.7 | 76 | 60*18*7.5 |
| 31 | 802030 | 400 | 3.7 | 90 | 30*20*8 |
| 32 | 901860 | 950 | 3.7 | 70 | 60*18*9 |
| 33 | 932540 | 930 | 3.7 | 70 | 40*25*9.3 |
Capacity between 1000mAh and 3000mAh
| NO. | model | capacity(mAh) | voltage(V) | resistance(mΩ) | measurement（L*W*H ±0.5mm） |
| 1 | 103040 | 1200 | 3.7 | 65 | 40*30*10 |
| 2 | 103450 | 1800 | 3.7 | 60 | 50*34*10 |
| 3 | 103560 | 2500 | 3.7 | 56 | 60*35*10 |
| 4 | 355780 | 1300 | 3.7 | 15 | 80*57*3.5 |
| 5 | 386888 | 1800 | 3.7 | 19 | 88*68*3.8 |
| 6 | 503759 | 1200 | 3.7 | 65 | 59*37*5 |
| 7 | 503759 | 1350 | 3.7 | 62 | 59*37*5 |
| 8 | 503860 | 1250 | 3.7 | 65 | 60*38*5 |
| 9 | 523450 | 1000 | 3.7 | 68 | 50*34*5.2 |
| 10 | 603450 | 1000 | 3.7 | 68 | 50*3.4*6 |
| 11 | 604045 | 1200 | 3.7 | 65 | 45*40*6 |
| 12 | 703048 | 1000 | 3.7 | 68 | 48*30*7 |
| 13 | 803040 | 1000 | 3.7 | 68 | 40*30*8 |
| 14 | 823291 | 2800 | 3.7 | 54 | 91*32*8.2 |
| 15 | 853048 | 1200 | 3.7 | 65 | 48*30*8.5 |
Capacity more than 3000mAh
| NO. | model | capacity(mAh) | voltage(V) | resistance(mΩ) | measurement（L*W*H ±0.5mm） |
| 1 | 104167 | 3300 | 3.7 | 50 | 67*41*10 |
| 2 | 105080 | 5000 | 3.7 | 46 | 80*50*10 |
| 3 | 114077 | 4100 | 3.7 | 50 | 77*40*11 |
| 4 | 507097 | 4250 | 3.7 | 49 | 97*70*5 |
| 5 | 526897 | 4300 | 3.7 | 50 | 97*68*5.2 |
| 6 | 5566113 | 5000 | 3.7 | 56 | 113*66*5.5 |
| 7 | 605080 | 3000 | 3.7 | 53 | 80*50*6 |
| 8 | 606090 | 4000 | 3.7 | 51 | 90*60*6 |
| 9 | 6068116 | 6000 | 3.7 | 49 | 116*68*6 |
| 10 | 7050100 | 4000 | 3.7 | 51 | 100*50*7 |
| 11 | 7242125 | 3200 | 3.7 | 19 | 125*42*7.2 |
| 12 | 7566121 | 7000 | 3.7 | 45 | 121*66*7.5 |
| 13 | 8570170 | 10000 | 3.7 | 40 | 170*70*8.5 |
| 14 | 805080/83 | 4000 | 3.7 | 51 | 80/83*50*8 |
Our certificates of some batteries for reference
We got ISO9001 certification, some batteriesare SGS, CE, PSE, KC, UL, IEC, RoHs and UN38.3 certified, MSDS can be provided.If the rechargeable li-polymer battery you want doesn't have current certification, we could apply for you.
There is always a suitable way for you!
We could arrange sea, air and express (UPS, DHL, FEDEX, TNT, EMS, etc.) transportation for rechargeable li-polymer battery, with 10 years experience and trustworthy forwarder partners, shipment won’t be a problem.
T/T, Paypal, credit card, western union andL/C payment are acceptable, choose a convenient way for yourself!
We do custom battery, if there's no suitable design for you on our website, just take the CUSTOM TABLE on the website for reference or contact us directly to confirm the necessaryparameters, we will customize a suitable one for you!
