Customized 3S PCM protection circuit module for rechargeable lithium ion battery

Customized 3S PCM protection circuit module for rechargeable lithium ion battery

Customized 3S PCM protection circuit module for rechargeable lithium ion battery
CategoriesProtection Circuit Module
BrandPOEAE
ModelBD20
FOB portShenzhen, Hongkong, others
Terms of PaymentL/C, Western Union, T/T, Paypal
Download DOCpdf icon
Update TimeApr 29,2024
Detail Information

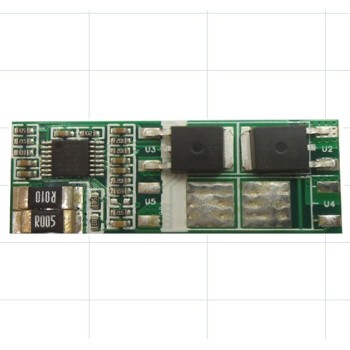

Rould 1s protection PCB board for rechargeable lithium ion battery



Electrical Diagram



Parameters

No

Item

Condition

Specification

1

输入电压/input Voltage

B+/B-间输入电压/input Voltage B+ to B-

-0.3+26V

2

过充电

Overcharge

保护电压/Detection voltage

4.350±0.050V

3

恢复电压/ Release voltage

4.150±0.050V

4

保护延迟时间/ Detection delay time

1.0±0.5S

5

过放电

Over discharge

保护电压/Detection voltage

2.4±0.08V

6

恢复电压/ Release voltage

3.0±0.10V

7

保护延迟时间/ Detection delay time

100±50mS

8

放电过流

Over discharge current

放电过流保护电流/Over current

4.008.00A

9

放电过流保护延时/delay time

10.0±5.0mS

10

短路保护

短路保护延时/ Short detection delay time

100600uS

11

恢复条件/Release Conditions

断开负载/Cut off load

12

自耗电

Normal current consumption

工作状态自耗电

Normal current consumption of PCM

Max50.00uA

13

OV充电/0V charger

是否允许0V充电/allowed 0V change

YES

14

建议工作条件

Suggest working conditions

建议最大持续充/放电电流

max continuous charge/discharge current

3.00A

15

建议工作温度/suggest working temperature

-2060

16

内阻/IR resistance

PCM内阻/ IR of PCM

≤70.00 mΩ

17

PCM尺寸

The size of final PCM

长度/ The length of final PCM

38.50±0.10mm

18

宽度/ The width of final PCM

16.00±0.10mm

19

厚度/ The thickness of final PCM

MAX:4.00mm

20

外观

Appearance

1)    没有元器件的破损/Nothing part deflection

2)    所有焊点良好/The status of solder is all right

3)    PCM 没有翘曲/ PCM will not crook

4)    符合力通威的出货外观标准

 Settle for LTW Module appearance standard
